Split Colloid Mill

Split Colloid Mill part contacting materials adopts stainless steel materials made and motor parts and no direct contact with the material part is made from carbon steel material.

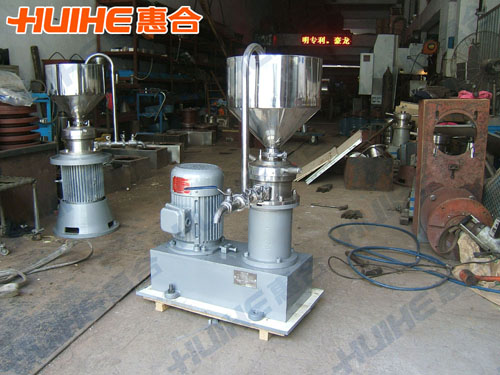

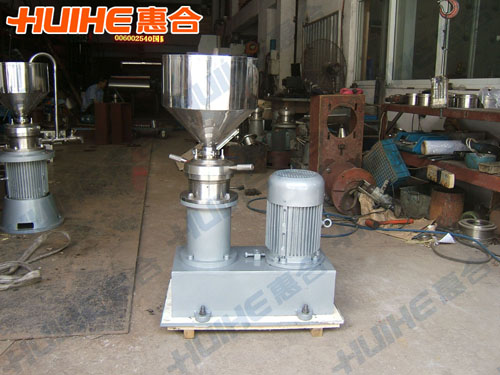

Live Demonstration of Colloid Mill

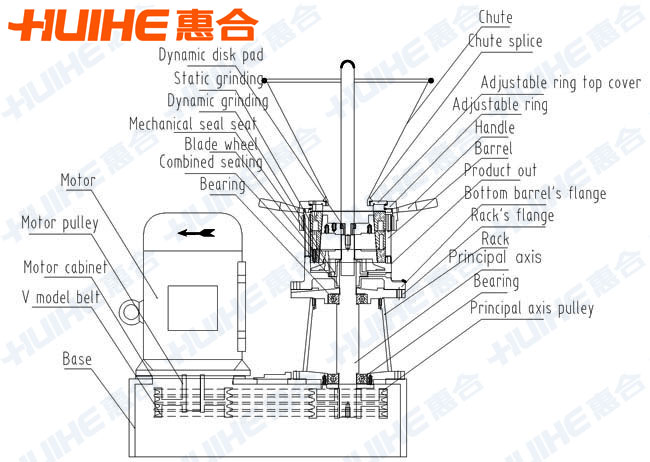

Structure of Split Colloid Mill

Usage of Split Colloid Mill

The colloid mill is widely applied in food, chemical, pharmaceutical, daily chemical and other industry.

Characteristics of Split Colloid Mill

1、Split colloid mill’s motor and gear grinding packed separately, through the pulley, the belt drive, so the speed of the grinding besides decided by motor rotate speed, also related to the two pulleys; it’s similar to the ten-speed bicycle.

2、Split colloid mill also called horizontal colloid mill, production is more complex than vertical colloid mill, design should consider when in the production of the colloid mill axial positioning, it’s in case the motor shaft axial dynamic touch tooth wear, preferably before the motor end cover bearing, because the design of the motor rotor and shaft axial thermal expansion in motor front bearing key to rear bearing direction, to reduce the influence on grinding head clearance.

3、Split colloid mills grinding’s speed is higher than motor rotate speed, so the production is corresponding big, even if the same model, the same power of motor, separation of production will also significantly greater than the vertical.

4、Split colloid mill due to separate motor and gear grinding, the heat generated in work noninterference, it’s easy to work long hours.

Technical parameters of Split Colloid Mill

Model		JML-50		JML-80	JML-100	JML-120	JMF-80	JMF-100	JMF-120	JMF-140	JMF-180
Emulsification fineness um （single cycle or multi-cycle）		5~40		3~40	2~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjustment range mm		1-0.01		1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output t/h change according to materials			0.01-0.2	0.3-1	0.5-2	0.7-3	0.3-1	0.5-2	0.7-3	1-4	2-5
Motor	Power kw		1.1	3	5.5	7.5	4	5.5	7.5	11	15
	Pressurev		380	380	380	380	380	380	380	380	380
	Stirring speed r/min		2880	2880	2880	2880	2880	2880	2880	2880	2880
Grinding diameter mm			∮50	∮80	∮100	∮120	∮80	∮100	∮120	∮140	∮180
Discharge port diameter （時）			∮15	∮25	∮32	∮40	∮25	∮32	∮40	∮40	∮65
Cooling water pipe （時）			∮1/8〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞
Dimensions	Length mm		420	520	560	560	640	750	750	820	980
	Width mm		280	400	420	420	550	620	620	700	800
	Height mm		760	900	950	950	1030	1080	1080	1250	1550
Weight kg			45	84	113	135	210	275	295	325	450

Notes:

1. The technical parameters of colloied mill in the chart are standard configuration. Any specific requirements, please let us know.

2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.

The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
