Plate heat exchanger is the ideal equipment that liquid-liquid, liquid-gas to change heat.In the same pressure loss situation, the heat transfer coefficient is 3 to 5 times higher than pipe heat exchanger. We will provide you the most competent products and solutions, both of quality and price.

Classification of Plate Heat Exchanger

1. according to the pads materials: it can be divided into butadiene acrylonitrile rubber (NBR), EPDM, fluorine rubber (TP)

2. according to the piece area, there are 0.15㎡, 0.24 ㎡, 0.65 ㎡, 0.85 ㎡, 1.54 ㎡ and 1.8 ㎡

3. according to the stent material，there are iron stents and stainless steel support

Usages of Plate Heat Exchanger

It is applied in metallurgy, mine, petroleum, chemical industry, electric power, medicine, food, chemical fiber, paper making, textile, ship, heating and other departments, can be used for heating, cooling, evaporation， condensation， sterilization and waste heat recovery.

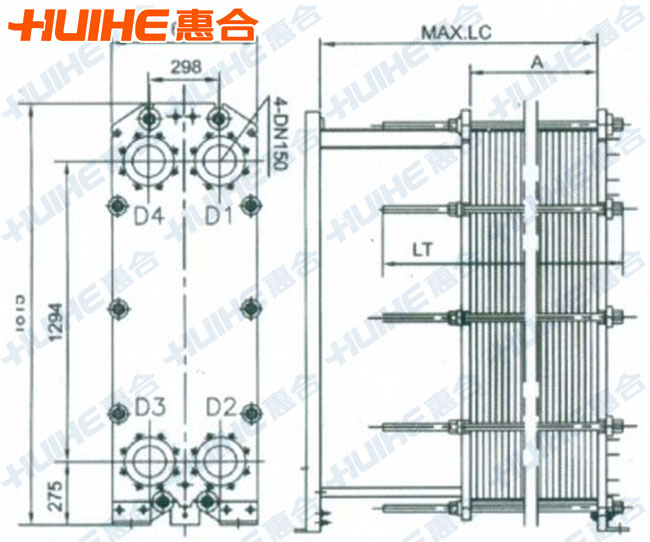

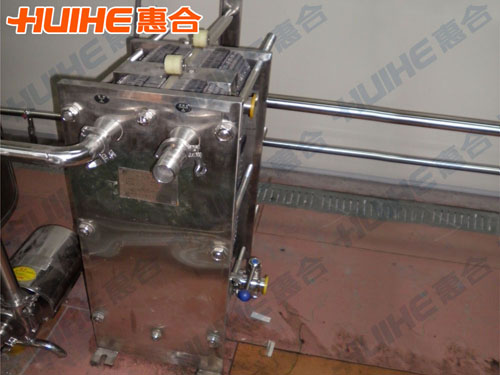

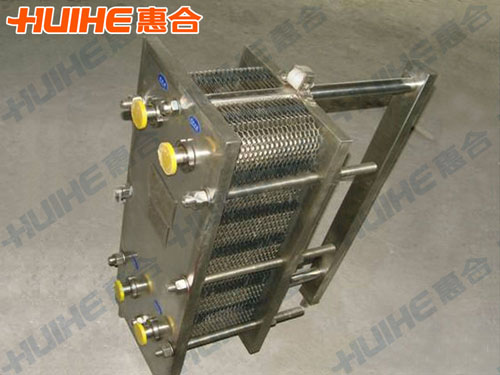

Structure of Plate Heat Exchanger

Characteristics of Plate Heat Exchanger

1. high efficiency and energy saving: its heat transfer coefficient is in 3000 to 4500 kcal/m2 · ° C · h, 3 ~ 5 times higher than tubular heat exchanger.

2. compact structure: plates are closely arranged, compared with other types of heat exchanger, plate heat exchanger has less covering area and space, the area is only 1/5 of the tubular heat exchanger.

3. easy clean and convenient disassembling: plate heat exchanger fixes the plates by clamping bolts, thus making disassembling convenient, can open to clean any time. The bright board face makes high turbulent degree, so it is not easy to scale.

4. long service life: plate heat exchanger uses stainless steel or titanium alloy plate for repression, can resistant to all kinds of corrosive medium. The pads can change at will, and convenient in maintenance.

5. strong adaptability: plates are all independent components, according to requirements, it can increase or decrease process at will, various in form. It also can be used in all kinds of different process requirements.

6. not string of liquid, the seal groove of plate heat exchanger is setted with discharge liquid way, each media will not in collusion, even the appearance of leak, the media always exudes.

Technical Parameters of Plate Heat Exchanger

Model	BR-0.06	BR-0.12	BR-0.2	BR-0.3
Heating transfer area of single piece（m²）	0.06	0.12	0.2	0.3
Corrugated shape	herringbone	herringbone	herringbone	herringbone
Plate thickness（mm）	0.6	0.7	0.7	0.7
Pads form	Clasp type	Clasp type	Clasp type	Clasp type
Tube diameter（mm）	32	38	51/80	51/100
Maximum working pressure （Mpa）	1.0	1.0	1.0	1.0
Maximum working temperature （℃）	150	150	150	150
