JMFB-120 Sanitary Colloid Mill

JMFB-120 sanitary colloid mill works with shearing, grinding high-speed stirring .Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The above forces effectively evenly disperse, emulsify, smash material.

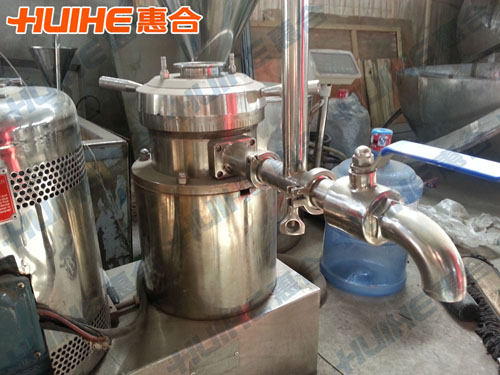

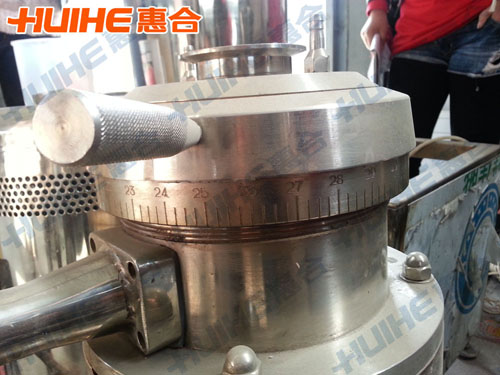

Live Demonstration of Colloid Mill

Structure of JMFB-120 Sanitary Colloid Mill

The main structures of colloid mill are grinding parts, the base transmission department and dedicated motor. The dynamic and still millstones in the core part and mechanical seal parts are the most key parts. Therefore, according to the different natures of the materials, the selection must be different. But the materials are made of stainless steel or specific materials. The motor need to be designed specifically, depend different model. The motor flange should install retaining plate to prevent leakage.

Usage of JMFB-120 Sanitary Colloid Mill

1. The split colloid mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry,medicine industry,chemical industry and everyday chemical industry etc.

2. It used to make soybean milk,fruit jam,peanut butter,artificial corn milk,cream,perfumery compound,pigment,greasing oil,dyestuff,pant,fish live oil,pollen,honey,tooth-paste and so on.

Characteristics of JMFB-120 Sanitary Colloid Mill

Relative to the pressure-type homogenizer, colloid mill first is a kind of centrifugal equipment. It has the advantages of simple structure, convenient maintenance and is suitable for high viscosity materials and large particles materials.

Technical parameters of JMFB-120 Sanitary Colloid Mill

Model		JML-50		JML-80	JML-100	JML-120	JMF-80	JMF-100	JMF-120	JMF-140	JMF-180
Emulsification fineness um （single cycle or multi-cycle）		5~40		3~40	2~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjustment range mm		1-0.01		1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output t/h change according to materials			0.01-0.2	0.3-1	0.5-2	0.7-3	0.3-1	0.5-2	0.7-3	1-4	2-5
Motor	Power kw		1.1	3	5.5	7.5	4	5.5	7.5	11	15
	Pressurev		380	380	380	380	380	380	380	380	380
	Stirring speed r/min		2880	2880	2880	2880	2880	2880	2880	2880	2880
Grinding diameter mm			∮50	∮80	∮100	∮120	∮80	∮100	∮120	∮140	∮180
Discharge port diameter （時(shí)）			∮15	∮25	∮32	∮40	∮25	∮32	∮40	∮40	∮65
Cooling water pipe （時(shí)）			∮1/8〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞	∮1/4〞
Dimensions	Length mm		420	520	560	560	640	750	750	820	980
	Width mm		280	400	420	420	550	620	620	700	800
	Height mm		760	900	950	950	1030	1080	1080	1250	1550
Weight kg			45	84	113	135	210	275	295	325	450

Notes:

1. The technical parameters of colloied mill in the chart are standard configuration. Any specific requirements, please let us know.

2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.

The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
