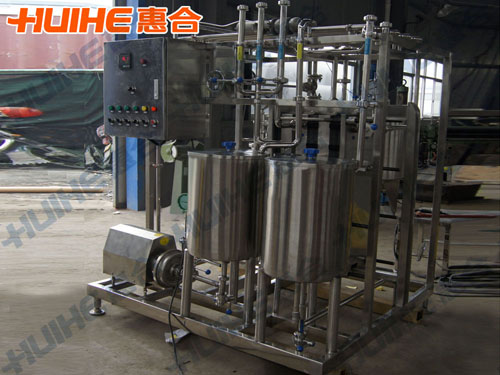

Automatic Plate Sterilizer Machine(Fresh Soybean Milk )

Automatic plate sterilizer's optional capacity from 1t/hr to 30t/hr.The system work in aseptic section and normal section, for the technical require-ments of filling at low temperature,normal temperature and high temperature. The seven-section heat exchanger ensures minimum consumptionof energy.Ultra-high temperature water is employed as the media for the heating of materials and temperature adjustment of filling exit,featuring high accuracy.

Classification of Plate Sterilizer

Automatic configuration：it adopts computer procedure to control PLC technology, according to set process requirements, to control whole process of production, with CIP cleaning procedures to automatically clean.

Semi-automatic configuration: the whole process of operation is semi-automatically control. Operator can control the pumps, valves and back flow function on the control panel. By the temperature control PID to maintain the sterilization temperature. Sterilization temperature has a continuous record.

Usages of Plate Sterilizer

It is for sterilize the milk, tea, juice, jam and any other beverage liquid.

Characteristics of Plate Sterilization Machine

This sterilization equipment has quite high recovery rate, compact structure, small occupation, flexible flow change and convenient operation and maintenance, favored by the users. Besides, the ultra high temperature sterilizers including CIP system can be manufactured according to customer requirements.

Main parameters of Plate Sterilizer

Process parameters: 65 ℃ homogeneous to 120 ℃(30 S)-5 ℃

Cooling water 25 ℃

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Cold water flow （T/H）	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam pressure (bar)	Cold water flow （T/H）	Electric power (kw)	Body size (L×W×H)	Weight (kg)	Material	Steam	Medium
HE-BR0.1-DJ-1	1	40	5.0	2	2.8	1.6×1.4×1.8	820	25	DN25	25
HE-BR0.1-DJ-1.5	1.5	60	5.0	3	2.8	1.6×1.4×1.8	860	25	DN25	25
HE-BR0.1-DJ-2	2	80	5.0	4	3.0	1.6×1.4×1.8	890	38	DN25	38
HE-BR0.1-DJ-3	3	120	5.0	6	3.7	1.8×1.6×2.0	1030	38	DN25	38
HE-BR0.1-DJ-4	4	160	5.0	8	3.7	1.8×1.6×2.0	1100	38	DN25	38
HE-BR0.1-DJ-5	5	200	5.0	10	3.7	1.8×1.6×2.0	1170	38	DN32	38
