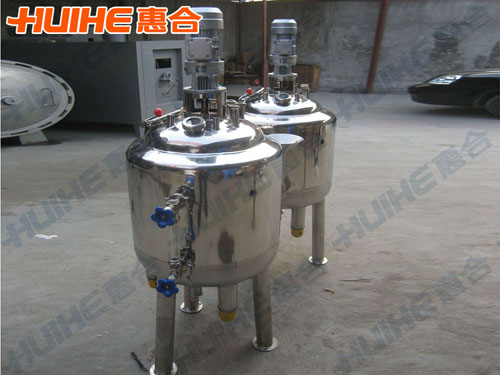

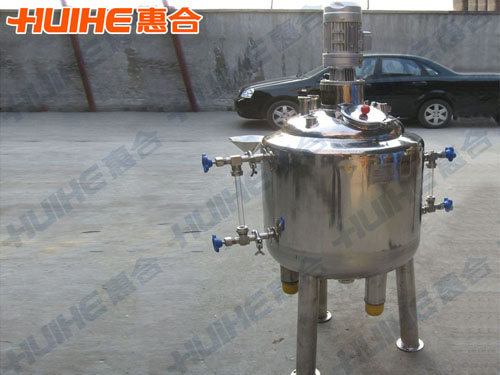

Biological Fermentation Tank

Biological fermentation tank is a kind of stainless steel tank used to mechanical agitation and fermentation to materials. This equipment adopts inner circulation, with impeller scattered and break the bubble and its dissolving oxygen rate is high, mixed effect is good. The stainless steel SUS304 tank equipped with an automatic spray cleaning head, to ensure the production process accord with medicines GMP standard.

Classification of Biological Fermentation Tank

1.According to Structure: opening on the head & conical sealed head on the bottom, up & down elliptical sealed head

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-1000L, also can design and facture in accordance with customers’ requirements.

Structure of Biological Fermentation Tank

This fermentation equipment is mainly used to develop and ferment all kinds of bacterial, so the seal is good ( to prevent bacterial contamination).

The inner pot has an agitator to a stirring effect.

Body Material:

a). Stainless steel inner pot（SUS304/SUS316L）, carbon steel outer pot (Q235-B) treated with anti-rust paint

b). the whole machine is made of stainless steel (SUS304/SUS316L)

Usage of Biological Fermentation Tank

Biological fermentation tank is mainly used for dairy, food, biotechnology, beverage, wine and other industry to stir and ferment.

Characteristics of Biological Fermentation Tank

1. This machine can be CIP cleaned online, SIP sterilization (121°C/0.1MPa).

2. Designed in accordance with sanitary requirement, so the structural design is very user-friendly and easy to operate. While, smooth transmission, low noise.

3. There is appropriate diameter; the stirring device is made on demand, energy-saving, stirring, good fermentation effect.

4. The inner surface is mirror-polished (roughness Ra≤0.4µm); the weld of the inner pot with inlet, outlet, sight mirror and manhole use stretch flanging arc transition. No dead corners ensure the reliability and stability in the producing process.

Technical parameters of Biological Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.
