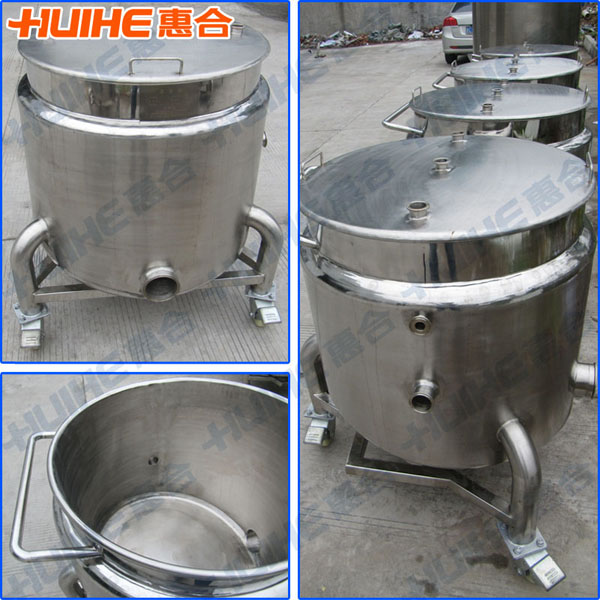

Aseptic Water Box

Aseptic water box is vertical type with single-layer sanitary container equipment. It is the used buffer and liquid storage facilities in the pharmaceutical, biotechnology, food, beverage, wine, spices, chemicals, oil and other industries.

Classification of Aseptic Water Box

1. According to Structure: opening on the head & ramp bottom，opening on the head & conical sealed head on the bottom , up & down conical sealed head, up & down elliptical sealed head

2. According to Material: there are SUS 304 and SUS316L

Structure of Aseptic Water Box

1. The stainless steel tank is single layer structure.

2. The material is stainless steel SUS304 or SUS316L.

Usage of Aseptic Water Box

1. It can be used as liquid storage tank, mixing tank, temporary storage tank, water storage tank and so on.

2. It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.

Characteristics of Aseptic Water Box

1) Resistant to corrosion for acids and alkalis temperature up to 180 C degree often higher depends on

2) Withstanding mechanical stress

3) Withstanding thermal shock

4) Resistant to adhesion

5) Favorable price, high quality and excellent after-sales service

6) Jacketed or limpet coil straight side for product heating and cooling

7) Complete with a sight glass

8) Easy and fast to clean internal surface

9) Glass lining with steel outside for structural strength is an inert material. There is no contamination of product purity. Color and taste are not affected. Sticky materials such as latex and resins do not readily cling to the fire-polished smooth surface.

10) Our tanks and receivers provide the many advantages of glass with the durability and strength of steel.

Technical Parameters of Aseptic Water Box

Model	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Height （mm）	600	800	800	800	1000	1220	1220	1500	1500
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	sanitary manhole, cleaning ball, liquid level gauge

Notes:

1. The technical parameters of storage tank is standard configuration. Any specific requirements, please point out.

2. The process parameters that need provided when choosing the stainless steel tank: the nature of material, working pressure, temperature, specific requirements, etc.
