Your are here: Home >> Products >>Stainless Steel Return Pump
The stainless steel return pump is applicable to transport milk and other similar liquid food , absorb the tallest temperature of material as 70-80 °C. This pump is a single suction entire closed type centrifugal pump.
Directory
- Classification of Stainless Steel Return Pump
- Usages of Stainless Steel Return Pump
- Characteristics of Stainless Steel Return Pump
- Technical Parameters of Stainless Steel Return Pump
- Stainless Steel Return Pump Finished Picture
Classification of Stainless Steel Return Pump
1. according to structure, it can be divided into three-foot pump and four-foot pump
2. according to material, there are SUS304 and SUS316L
3. according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.
Usages of Stainless Steel Return Pump
This stainless steel pump is suitable for urban environmental protection, construction, fire control, chemical, pharmaceutical, printing, dyeing, brewing, electric power, electroplating, papermaking and equipment cooling, etc.
Characteristics of Stainless Steel Return Pump
1, the pump uses rigid structure and excessive thick wall design. All the parts such as pump body, pump cover and impeller that contacts with the material are made by SUS316L or SUS304 stainless steel.
2,Mechanical shaft adopts high quality graphite, carbide silicon or hard alloy steel to produce. Greatly improving the wear resistance and prolong the using life.
3, it is easy to maintenance (open impeller type), between components are strong interchangeability.
Technical Parameters of Stainless Steel Return Pump
|
Model |
Flow(m3/h) |
Height of extrusive liquid(m) |
Motor ower(Kw) |
|
BAW-1 |
1 |
9 |
0.37 |
|
BAW-3 |
3 |
18 |
0.75 |
|
BAW-5 |
5 |
24 |
1.5 |
|
BAW-10 |
10 |
24 |
2.2 |
|
BAW-15 |
15 |
32 |
3 |
|
BAW-20 |
20 |
36 |
4 |
Notes:
1. The parameters of stainless steel pump in diagram are standard configuration, any other requirements, please put forward.
2, the process parameters need provided: the material properties, flow, special requirements, etc.

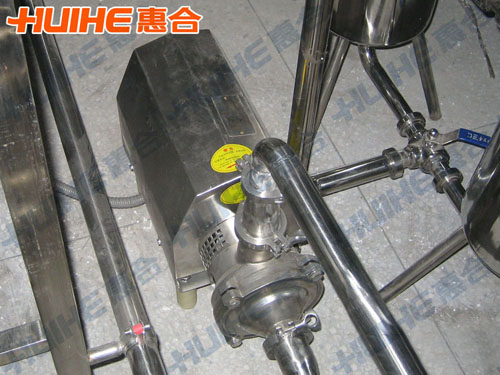

Stainless Steel Return Pump Finished Picture
