Your are here: Home >> Products >>Stainless Steel Pump
Stainless steel pump is injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare parts, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid.
Directory
- Classification of Stainless Steel Pump
- Usages of Stainless Steel Pump
- Technical Parameters of Stainless Steel Pump
- Stainless Steel Pump Finished Picture
Classification of Stainless Steel Pump
1. according to structure, it can be divided into three-foot pump and four-foot pump
2. according to material, there are SUS304 and SUS316L
3. according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.
Usages of Stainless Steel Pump
This stainless steel pump is suitable for conveying all kinds of wine, soft drinks, milk, soy sauce, vinegar, vegetable oil, medicine, chemical, fertilizer, dye, textile, paper and other liquid materials.
Technical Parameters of Stainless Steel Pump
|
Model |
Flow(m3/h) |
Height of extrusive liquid(m) |
Motor ower(Kw) |
|
BAW-1 |
1 |
9 |
0.37 |
|
BAW-3 |
3 |
18 |
0.75 |
|
BAW-5 |
5 |
24 |
1.5 |
|
BAW-10 |
10 |
24 |
2.2 |
|
BAW-15 |
15 |
32 |
3 |
|
BAW-20 |
20 |
36 |
4 |
Notes:
1. The parameters of stainless steel pump in diagram are standard configuration, any other requirements, please put forward.
2, the process parameters need provided: the material properties, flow, special requirements, etc.

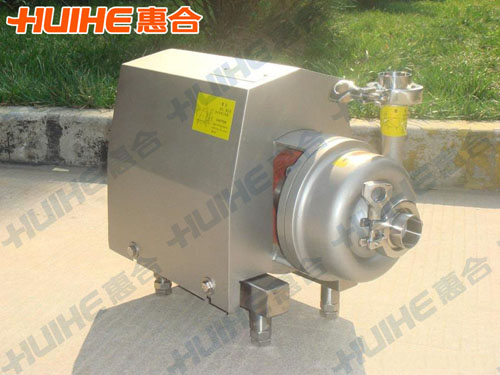

Stainless Steel Pump Finished Picture
