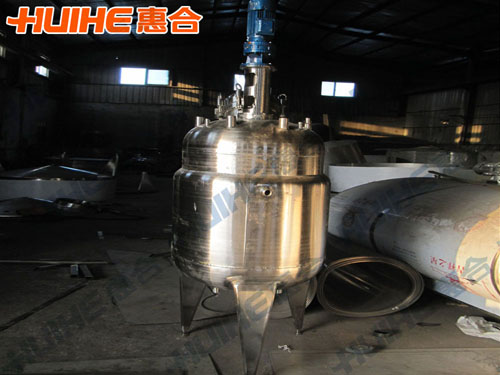

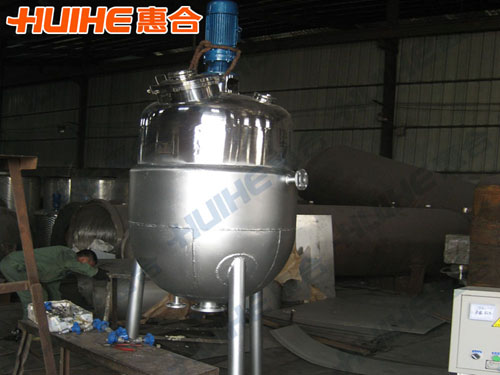

Pressure Tank

The pressure tank produced by Hangzhou Huihe Company belongs to high quality stainless steel tank, having advantages of corrosion resistant and excellent chemical compatibility. Large diameter is easy for clean and multiple port is easy for installation of temperature, pressure and other monitoring device. The pressure tank is provided with pressure gauge, discharging pressure valve, importing air valve and discharging liquid interface.

Structure of Pressure Tank

This series of stainless steel pressure tank is composed by stainless steel cylindrical tube, fluctuation ellipsoidal sealed head and equipped with health manhole, cleaning ball and level liquid gauge.

1, it is single layer structure.

2, material is stainless steel SUS304 or SUS316L.

Usage of Pressure Tank

It is widely used in petroleum, chemical, rubber, pharmaceutical, food industries, etc.

Technical Parameters of Pressure Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
