Alcohol Deposition Tank

Alcohol deposition tank is developed from traditional technology, mainly used for freeze Chinese medicine liquid getting fried and condensed or to operate warm alcohol sediment, also can be used to operate water sediment after Chinese herbs being extracted.

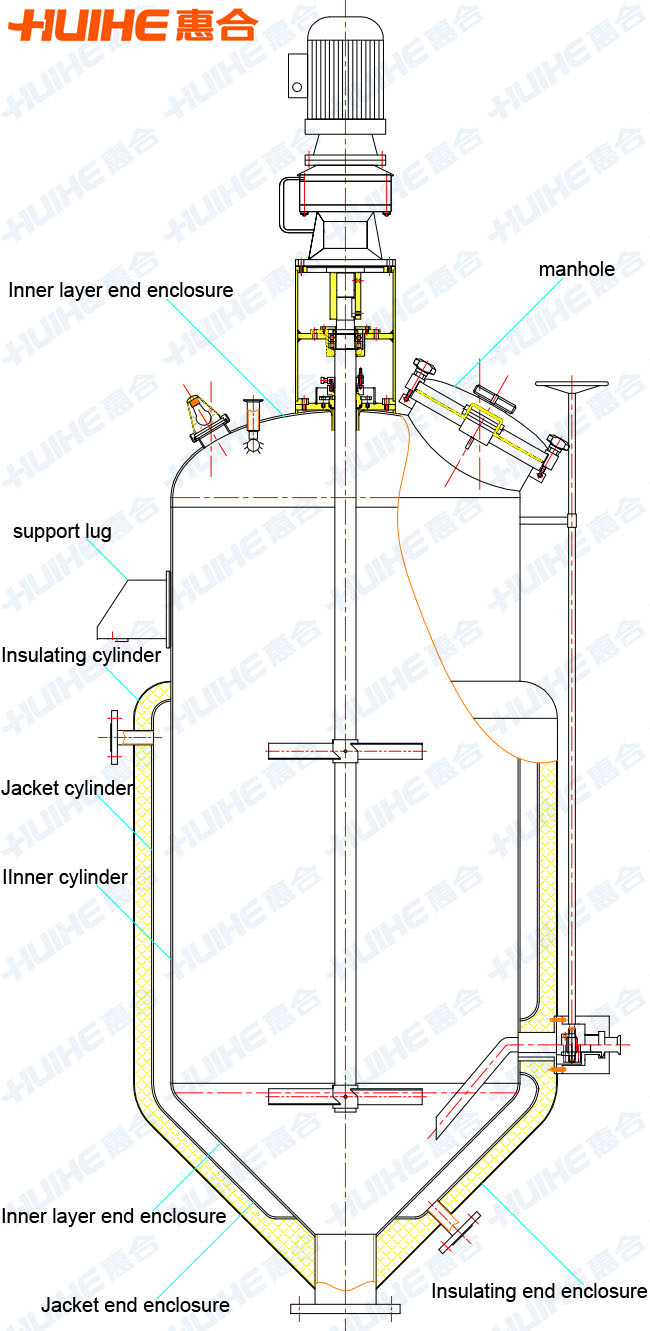

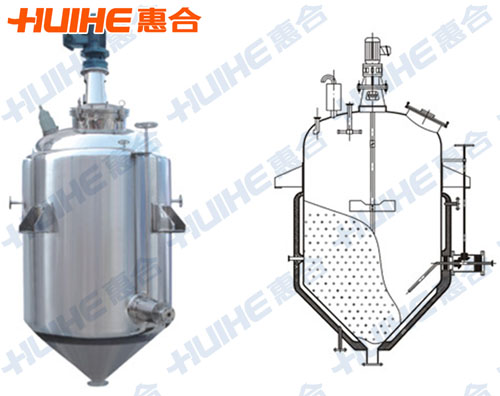

Structure of Alcohol Deposition TankUsages of Alcohol Deposition TankCharacteristics of Alcohol Deposition TankTechnical Parameters of Alcohol Deposition TankAlcohol Deposition Tank Finished Picture

Usages of Alcohol Deposition Tank

This alcohol deposition recovery equippment is suitable for alcohol sediment in Chinese medicine, oral liquid, foodstuff, health-protective products and chemical industry.

Characteristics of Alcohol Deposition Tank

1, Reduce the workers labor intensity, improve the working conditions;
2, Improve the work efficiency;
3, It can solve the problem of automatic cleaning, full compliance with national GMP standard, improve the product quality.

Technical Parameters of Alcohol Deposition Tank

Model		JC-330	JC-500	JC-1000	JC-1500	JC-2000		JC-3000	JC-6000
Volume （m³）		0.3	0.5	1.0	1.5	2.0		3.0	6.0
Heating transfer area（㎡）		1.8	3.0	4.5	6.5	7.5		8.5	13
Working temperature （℃）		Normal temperature ~-15
Jacket designed pressure （Mpa）		0.09-0.4
Pressure in tank（Mpa）		Normal pressure
Stirring power（KW）		0.75	0.75	1.5	2.2	2.2	3.0		5.0
Stirring speed（r/min）		72	72	72	72	72	72		125
Body size（mm）	Inter diameter	600	800	1000	1200
	Outer diameter	800	1000	1200	1400
	Height	900	1350	1700
