Cooling Milk Tank

Cooling milk tank is the main form a complete set of farm mechanization milking equipment , and it is more suitable for the manual milking farms and milk collection station, cooling collection store dairy milk. It has best cooling milk protection and prevent bacterial breeding.

Live Demonstration of Cooling Milk Pot

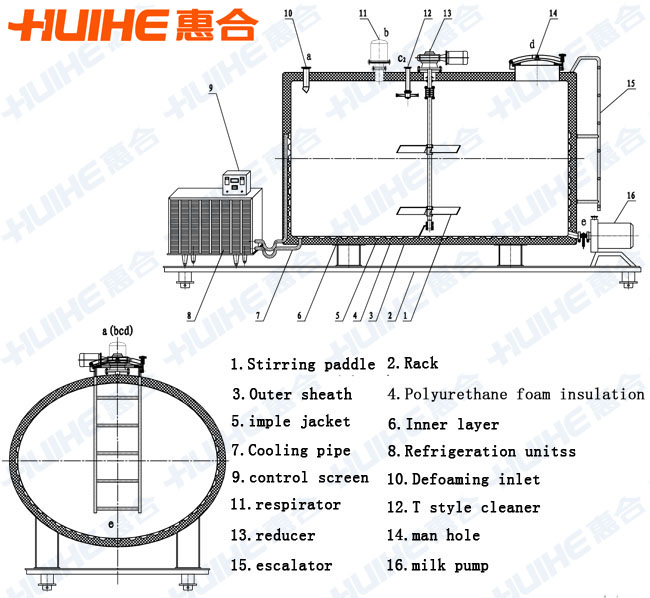

Structures of Cooling Milk Tank

Characteristics of Cooling Milk Tank

1. Rigid wall uses the advanced plate evaporator to refrigerate milk directly.

2. Refrigeration compressor uses imported French closed compressor set, equipped with the reliable midpoint defend device, so it will not burn motor out due to overload or system fault.

3. The stainless steel tank is automatic cleaning device and mixing device.

4. Insulation layer uses polyurethane foam with good insulation performance.

Technical Parameters of Cooling Milk Tank

Volume L	1000	2000	3000	5000	8000
Refrigeration amount W	9000	15000	19000	15000×2	19000×2
Refrigeration working medium R	R22	R22	R22	R22	R22
Insulation performance (溫度)	≤1℃/4h	≤1℃/4h	≤1℃/5h	≤1℃/5h	≤1℃/6h
Stirring speed R/min	36r/min	36r/min	36r/min	36r/min	36r/min
Designed Power Kw	3..3+0.55	5.5+0.55	6.8+0.55	5.5*2+0.75	6.8*2+0.75
Power	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Size mm	2800×1150 ×1600	3450×1550 ×1850	3700×1750 ×1950	4200×2050 ×2200	50000×2300 ×2650
