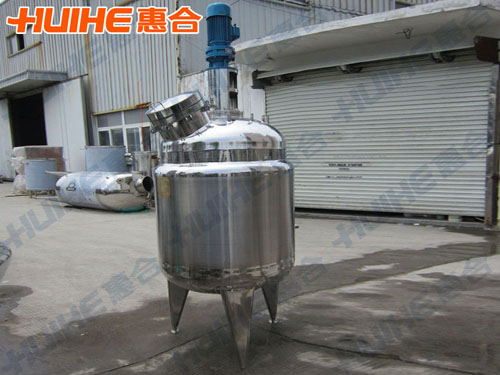

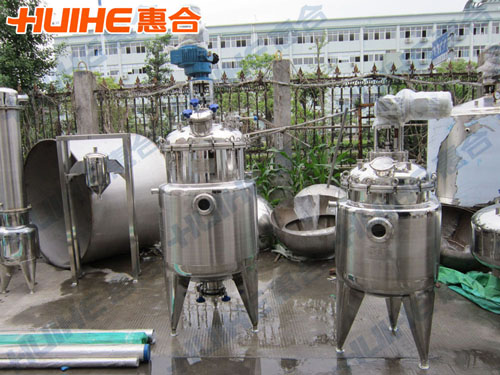

Stainless Steel Reaction Tank (Vessel)

Stainless steel reaction tank (vessel) belongs to stainless steel container equipment, The reaction kettle pot, pot cover, mixer, etc all parts adopt OCr18Ni9 or 1 cr18ni9ti stainless acid-resistant steel plate, so grade accord with national health standards. Using the product can reach the purpose of less investment, quick production, and high efficiency.

Structure of Stainless Steel Reaction Tank( Vessel)

Stainless steel reaction tank (vessel) consists of pot body, pot cover, agitator, jacket, bearing and gear, shaft sealing device, etc.It is equipped with electric heating rod, temperature and pressure gauge. The material and open hole can be according to the technological requirements of users.

Usages of Stainless Steel Reaction Tank( Vessel)

This stainless steel tank is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously.

Characteristics of Stainless Steel Reaction Tank( Vessel)

1. The advantages of low investment, fast production and high efficiency ;
2. With a quick heating, high temperature resistant, corrosion resistant, health, pollution-free ;
3. Such as stainless steel electric heating reaction kettle, the boiler automatic heating, use very convenient ;

Technical Parameters of Stainless Steel Reaction Tank( Vessel)

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
