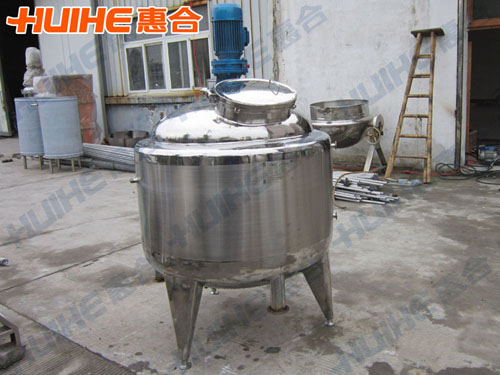

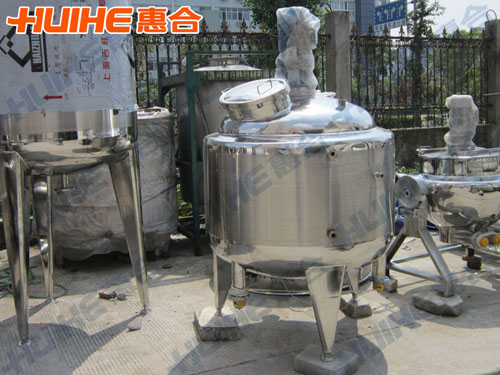

Steam Heating Reaction Tank (Vessel)

The premise of using steam heating reaction tank (vessel) is the customer itself with exogenous (such as steam) or cooling source (e.g., water). What must pay attention to is that the heating mode is better under the liquid heating or cooling for the next into the out. In various ways to export pipeline valve, to ensure unblocked.

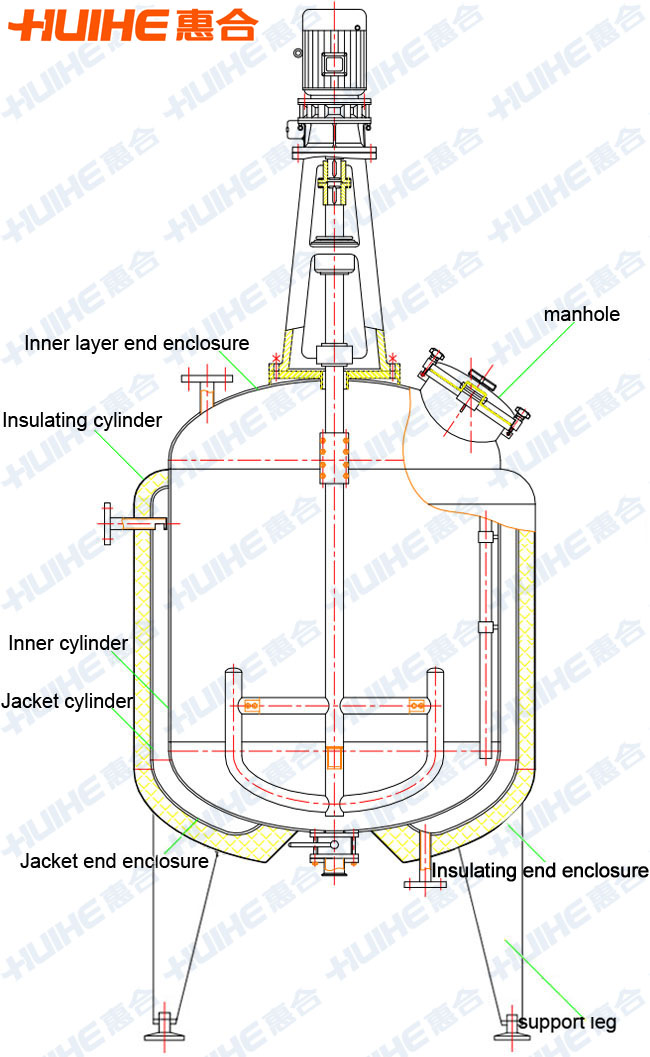

Structure of Steam Heating Reaction Tank (Vessel)

Usages of Steam Heating Reaction Tank (Vessel)

The stainless steel tank is widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical and food industries used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization and condensation process.

Characteristics of Steam Heating Reaction Tank (Vessel)

1、 In contact with the pot material of the pot body and parts adopt OCr18Ni9 or 1 cr18ni9ti stainless acid-resistant steel plate;

2、 The advantages of low investment, fast production and high efficiency;

3、 With a quick heating, high temperature resistant, corrosion resistant, health, pollution-free;

4、 Heat transfer effect is better than the enamel reaction vessel, fast heating and cooling;

5、 Steam valve and the cooling valve does not start at the same time, steam pipe gas on no hammer and collision.

Technical Parameters of Reaction Tank(Vessel)

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of reactor tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.
