Whirling Edge Jacketed Kettle with Agitator

Whirling edge jacketed kettle with agitator is also known as planetary jacketed kettle with agitator, mainly used in high viscosity precooked food materials, preparation, stewing concentrate products.
Material by a hemisphere of stamped stainless steel pot system, and uses the form of electromagnetic heating, the use of special mixing way transmission, which uses the planet stirrer and the pot body full access, realize the transmission revolution and rotation of the integer ratio, make the pot without stirring blind Angle.

Classification of Whirling Edge Jacketed Kettle with Agitator

According to Heating: Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle.

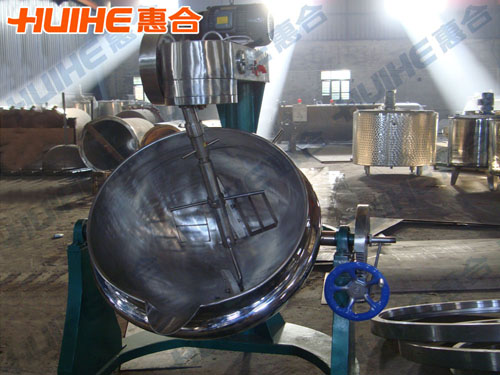

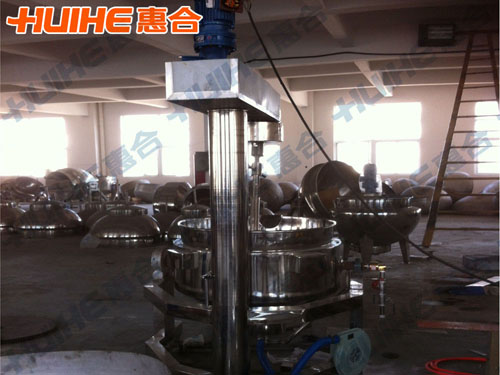

Live Demonstration of Whirling Edge Jacketed Kettle with Agitator

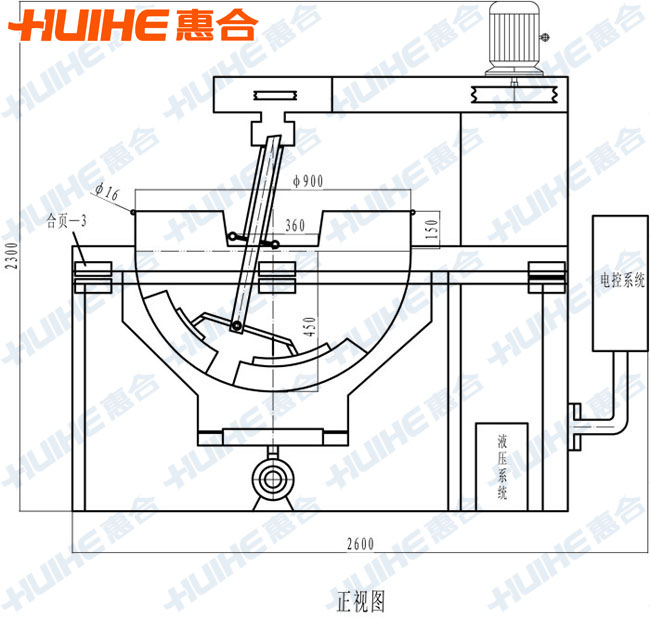

Structure of Whirling Edge Jacketed Kettle with Agitator

Usage of Whirling Edge Jacketed Kettle with Agitator

HUIHE machinery is well-known jacketed kettle factory, research on the equipment for many years, Whirling edge jacketed kettle with agitator, planetary jacketed kettle with agitator are widely used in high viscosity, fruit jam, jujube paste, sauce, bean, coffee, coffee, spices and other food, and daily chemical, pharmaceutical and other industries the toss to combine.

Technical Parameters of Whirling Edge Jacketed Kettle with Agitator

Kettle volume/L	Kettle diameter/ mm	Motor power/KW	Speed		Stirring methods	Arm/pan form	Heating methods
Kettle volume/L	Kettle diameter/ mm	Motor power/KW	revolution	rotation	Stirring methods	Arm/pan form	Heating methods
200	900	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic
300	1000	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic
400	1100	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic

Notes:

1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.

2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.

3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
