Planetary Jacketed Kettle with Agitator

Planetary jacketed kettle with agitator uses the form of electromagnetic heating, the use of special mixing way transmission, which uses the planet stirrer and the pot body full access, realize the transmission revolution and rotation of the integer ratio, make the pot without stirring blind Angle.

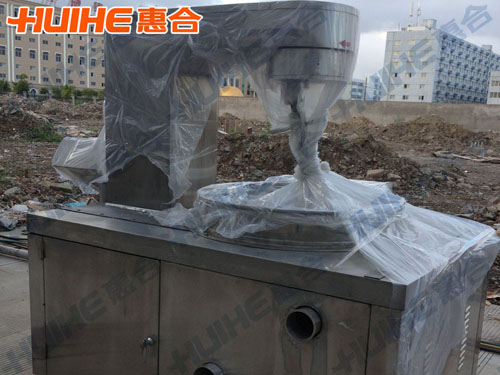

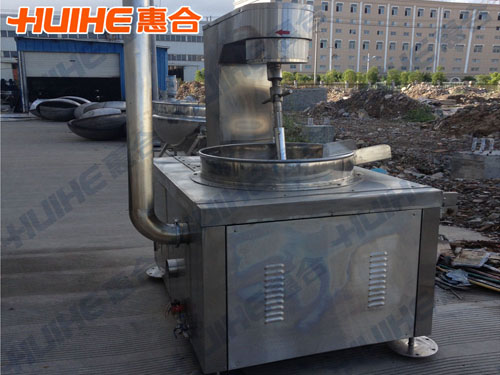

Live Demonstration of Planetary Jacketed Kettle with Agitator

Classification of Planetary Jacketed Kettle with Agitator

According to Heating: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle.

Usages of Planetary Jacketed Kettle with Agitator

The planetary jacketed kettle with agitator mainly used in high viscosity precooked food materials, preparation, stewing concentrate products.

Characteristics of Planetary Jacketed Kettle with Agitator

1. The jacketed kettle is a whirling edge tilting type jacketed kettle with agitator (planetary jacketed kettle with agitator) characteristics, solved the stirring of the discharge difficult, not easy to clean, a leading position among the same industry at home.
2. The device bottom of the kettle and pans are divided into three layers structure, with thermal insulation, circulation oil, heating up fast, save energy. To increase production.
3. Scraping the bottom of agitating system, completely solve the high viscosity material nutrients was not damaged, meet green standards, especially food filling enterprise ideal choice.
4. Automatic discharging system, uses the control circuits, it is more convenient to use. The kettle body can tilt any Angle, reduce the labor force, improve production efficiency
5. Use of advanced transmission and sealing structure, make the transmission part and the kettle is clean, health. Uses the frequency conversion power, run more smoothly. Electromagnetic heating form broke open way, warming faster, the halogen-light, no smoke, no harmful gases, no thermal radiation on the surrounding environment, good safety and appearance is beautiful and other characteristics, is a good performance of food processing equipment.

Technical Parameters of Planetary Jacketed Kettle with Agitator

Kettle volume/L	Kettle diameter/ mm	Motor power/KW	Speed		Stirring methods	Arm/pan form	Heating methods
Kettle volume/L	Kettle diameter/ mm	Motor power/KW	revolution	rotation	Stirring methods	Arm/pan form	Heating methods
200	900	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic
300	1000	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic
400	1100	0.75+1.5	6.7-33	14-69.3	Planet/scraping the bottom	Automatic/hydraulic	Steam, gas, electromagnetic

Notes:

1. The stirring power in the technical parameters of jacketed kettle chart is standard configuration. Any specific requirements, please let us know.

2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.

3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
