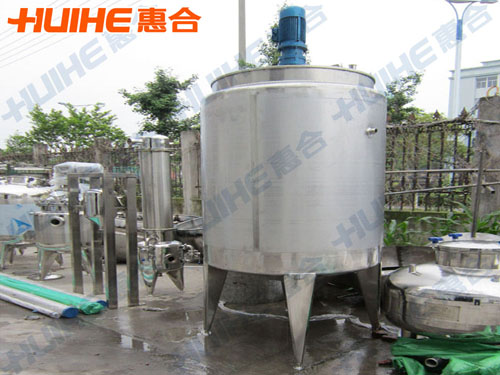

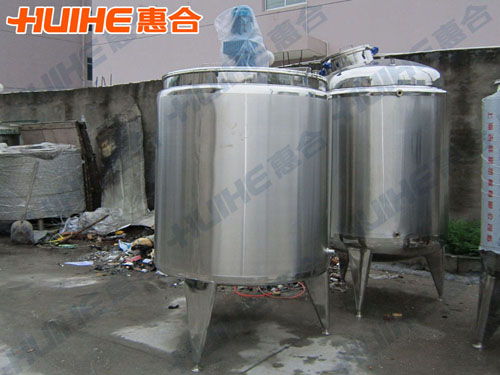

Cold and Hot Cylinder_ Cold and Hot Tank_ Aging Tank

Cold and hot cylinder is also known as aging tank, it belongs to a device in stainless steel container. And it has the characteristics such as energy-saving, noise reduction, corrosion resistance, strong production capacity, easy cleaning.

Structure of Cold and Hot Cylinder(Tank)

structure:the interior, jacket, insulation layer, the outer foreskin, speed reducer, agitator, thermometer and so on.
The interior: stainless steel SUS304, mirror-polished surface.
Jacket:the A3 or 1Cr18Ni9Ti steel plate, strengthen circle spiral device, the cold water from bottom to top (without pressure), to achieve the best heating and cooling purposes.
Insulation group: stainless steel plate cast into scales, insulation layer use polyurethane or mineral wool to keep the temperature, achieve insulation effect.
Speed reducer:cycloid planetary reducer, fixed in the tray of the beam, a shaft gear wheel connects with the impeller flexibly for easy removal and cleaning.
Thermometer:specification 100C-1000C, installed on the beam, straight out to minimum medium position, makes sure that can indicate temperature even when the liquid material to the lowest position, to achieve sterilization and aging purposes.

Usages of Structure of Cold and Hot Cylinder(Tank)

The cold and hot urn is widely used in dairy industries, food, pharmacy, chemical industry, beverage and so on..
And it is especially suitable for the milk pasteurization and insulation for the essential equipment of heating, cooling, warm-keeping, sterilization and storing slurry , which also is the essential equipment for ice cream production line.

Technical Parameters of Structure of Cold and Hot Cylinder(Tank)

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
