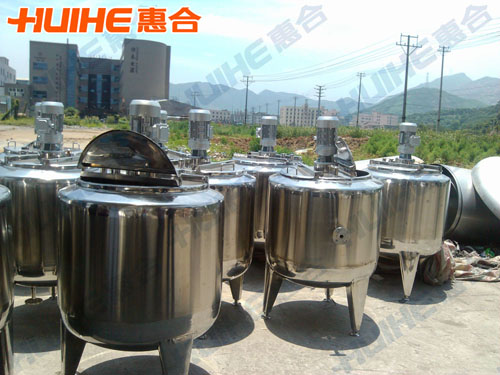

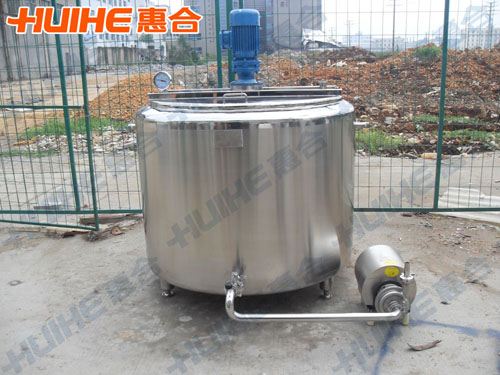

Open-type Cold and Hot Cylinder_ Open-type Ingredients Tank

Open-type cold and hot cylinder is also known as open-type ingredients tank, open-mouth type ingredients tank, This equipment is a container with cold and hot equipment, according to different production requirements in the production process, can be designed to have a function such as heating, cooling, according to the actual condition of factory can design steam heating, electric heating cylinder of cold and hot and cold and hot cylinder cooling loop device.

Classification of Open-type Cold and Hot Cylinder

1. According to the heating medium：natural gas cold and hot cylinder, steam heating cold and hot cylinder, electric heating cold and hot cylinder;

2. According to structure: ordinary cold and hot cylinder, up and down conical cold and hot cylinder, up and down head cold and hot cylinder

Usages of Open-type Cold and Hot Cylinder

It is a kind of stainless steel tank and widely used in dairy industry, food, pharmaceutical, chemical, beverage and other industrial departments to heat, cool, insulate sterilization processing or store slurry. Especially suitable for the pasteurized milk, and is the necessary equipment in ice cream production line. It is particularly suited to no steam heat source and small units and scientific research institutions, pilot use.

Characteristics of Open-type Cold and Hot Cylinder

1, Cooperate with mechanical mixing or magnetic seal for material have uniform heating, cooling effect.

2, At the same time, according to the requirements of the different operating mode design electrical control system and pipe installation system, realize the electric manual operation, save operating cost.

3, Cold and hot cylinder series of non-standard equipment, containers can design according to customer's request.

Technical Parameters of Open-type Cold and Hot Cylinder

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
