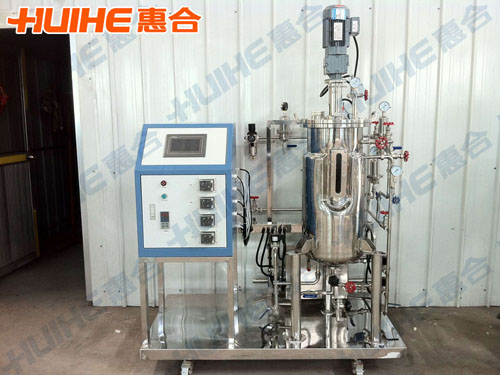

Liquid Strains Fermentation Tank

Hangzhou HUIHE Machine Facture Co., Ltd specializing in the production of liquid strains fermentation tank, because most of the industrial microbial need oxygen, so the aeration and agitation fermented is usually used to increase the dissolved oxygen, so as to meet the needs of microbial metabolism.

Usages of Liquid Strains Fermentation Tank

The fermentation equipment is a kind of stainless steel tank and mainly used for dairy, food, biotechnology, beverage, wine and other industry to stir and ferment.

Characteristics of Liquid Strains Fermentation Tank

1. Using gas circulation principle, the structure is simple, easy to operate, fast hypha growth, vitality is strong;

2. The tank electric heating sterilization, also can use steam sterilization, heating tube long life, easy to tear open outfit;

3. Using imported secondary high efficiency, high precision filter, filter, absolute filtration, avoid bacterial contamination, filter. Used in the fermentation tank of the reign of steam sterilization, do not need to tear open outfit, easy to use, long service life;

4. With double temperature control mode of automatic temperature control, high accuracy, can according to different strains of sterilization, fermentation temperature and sterilization time can be set up freely. Medium sterilization, cooling time not more than 2 hours;

5. Fermentation tank and pipe, valves, filters, are all made of stainless steel, polished both inside and outside, no dead Angle;

Technical Parameters of Liquid Strains Fermentation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole, cleaning ball、safety valve、pressure gauge

Notes:

1. The technical parameters of fermentation tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the fermentation tank: the nature of material, working pressure, temperature, specific requirements, etc.
