Stainless Steel Precision Filter

Stainless steel precision filter general settings before the pressure vessel, to remove turbidity the fine particles of 1 degree above, to meet the requirements of subsequent processes for water; Sometimes set at the end of the whole water treatment system to prevent the fine particles (such as a broken resin) into the water.

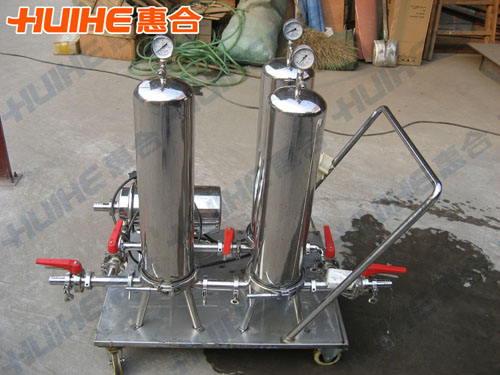

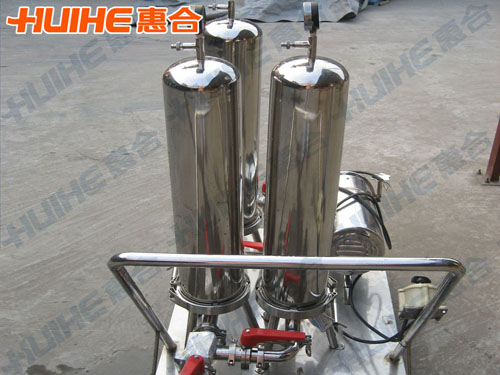

Structure of Stainless Steel Precision Filter

    Precision filter equipment is mainly consists of the filter housing, filter cartridge, etc.
    Most filter shell composed of R304 stainless steel materials, such as used in the acid and alkali resistance and other special occasions can R316 stainless steel shell. Can be divided into flange and clamp, and flange shell mainly use in place of filtering flow is larger.
    Cartridge filter shell is set mainly PP filter cotton core, also can choose some occasions wire wound filter or activated carbon filter.

Usages of Stainless Steel Precision Filter

The filtration system applied to various suspension of solid-liquid separation, wide applicable scope, applicable to the pharmaceutical, food, chemical industry, environmental protection, water treatment and other industrial fields, all kinds of coating equipment top cotton filter and frame type hydraulic press, bag filter.

Characteristics of Stainless Steel Precision Filter

1, High filtration precision, uniform filter aperture;
2, Filtering less resistance, large flux, sewage capability is strong, long service life;
3, Filter material spotlessness, the filter medium pollution;
4, Strength, high temperature resistant, filter out of shape not easily;
5, The price is low, low operating cost, easy cleaning, filter can be replaced;
6, Can effectively remove suspended solids in liquid, rust, etc;
7, Unique deep mesh structure make the filter element has high load capacity for slag.
