Vertical Diatomite Filter

Vertical diatomite filter contains of main machine,diatomite tank,transfusion pump,measurement pump.the main machine contains of the shuck,filter frame,compaction system etc. Filtering clarify degrees can up to 99.8%, the good operation even can filter out e. coli It also can filter out particles that below1-0.1 micron (including microbiological).

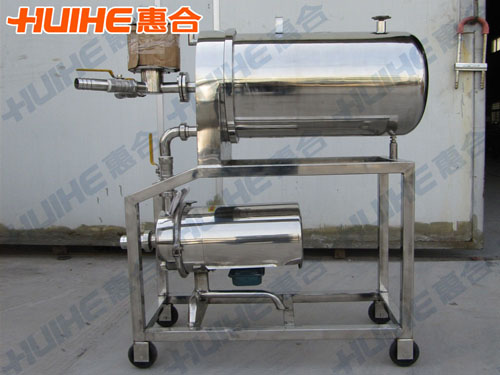

Live Demonstration of Diatomite Filter

Usages of Vertical Diatomite Filter

The vertical diatomite filter is widely used in beverage industry,sugar industry,seasoning,pharmaceutical industry,chemical product,and other products as gelatin,bone glue,seaweed rubber,vegetable,oil,starch and so on.

Characteristics of Vertical Diatomite Filter

1, Sealed cover,perpendicular filter vane,compact structure,few movable.

2, parts,convenient to maintenance.
3, Easy to operate disassembling is unnecessary when cleaning and discharging,low labor intensity.
4, Superior quality of corrosionproof,long-life for use.
5, Stable operation,reliable quality,effective filtering and excellent result.
6, High production efficiency and low energy consumption.

Technical Parameters of Vertical Diatomite Filter

Model	Body size （㎜）	Filter area （㎡）	Filter sheet（piece ）	Valve diameter	Theoretical flow（ T/H ）	Working pressure （Mpa ）	Model of pump （price plus）
XSK500-A	2450×750×850	15.9	38	Dg32	13-15	≤0.3	20T/H ,25m
XSK500-B	1950×750×850	8.5	20	Dg32	8-10	≤0.3	20T/H ,25m
XSK400-A	2350×680×800	9.8	38	Dg32	9-12	≤0.3	20T/H ,25m
XSK400-Ⅰ	1840×680×800	5.1	20	Dg32	6-8	≤0.3	10T/H ,25m
XSK330-Ⅱ	1700×600×750	3.4	20	Dg32	3-5	≤0.3	5T/H ,25m
XSK330-Ⅲ	1600×600×750	2.5	15	Dg32	2-4	≤0.3	5T/H ,25m
XSK250	1100×350×450	2	20	Dg25	1-3	≤0.3	3T/H ,25m
XSK220	950×300×420	1.1	15	Dg25	1-2	≤0.3	3T/H ,25m
